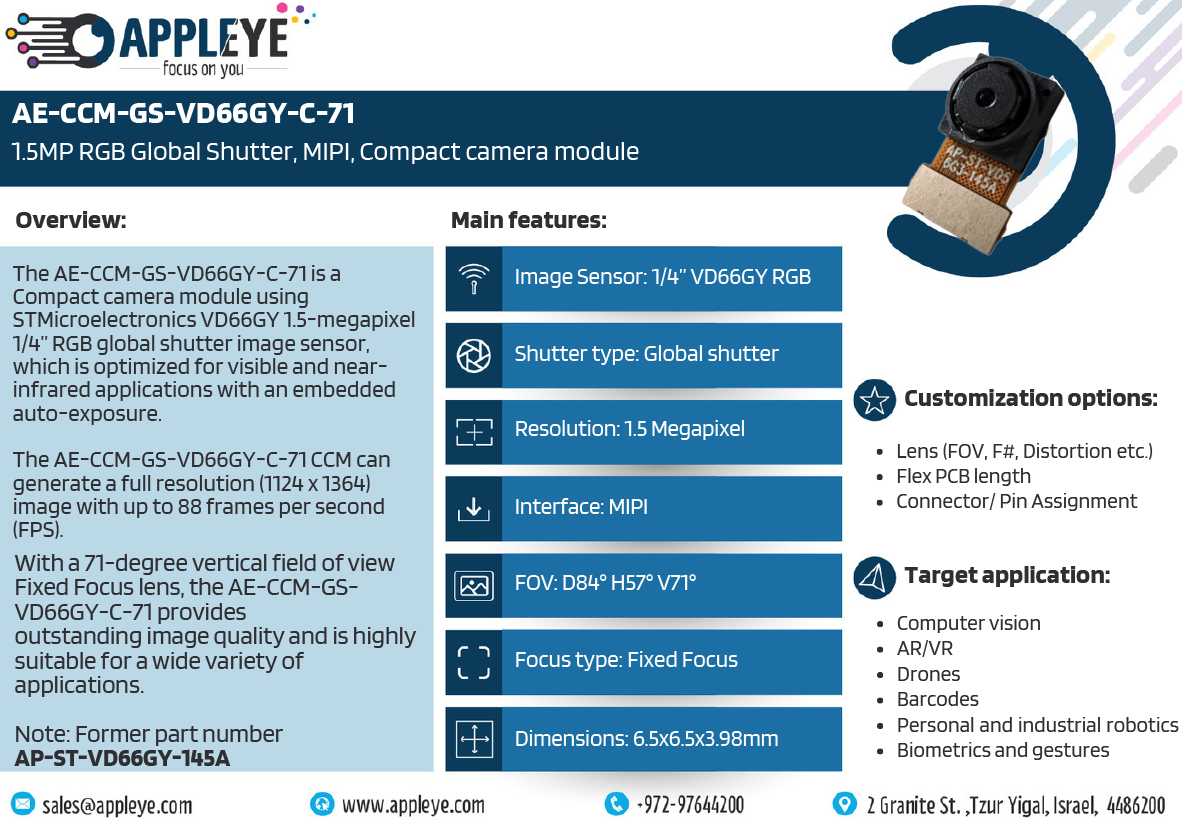

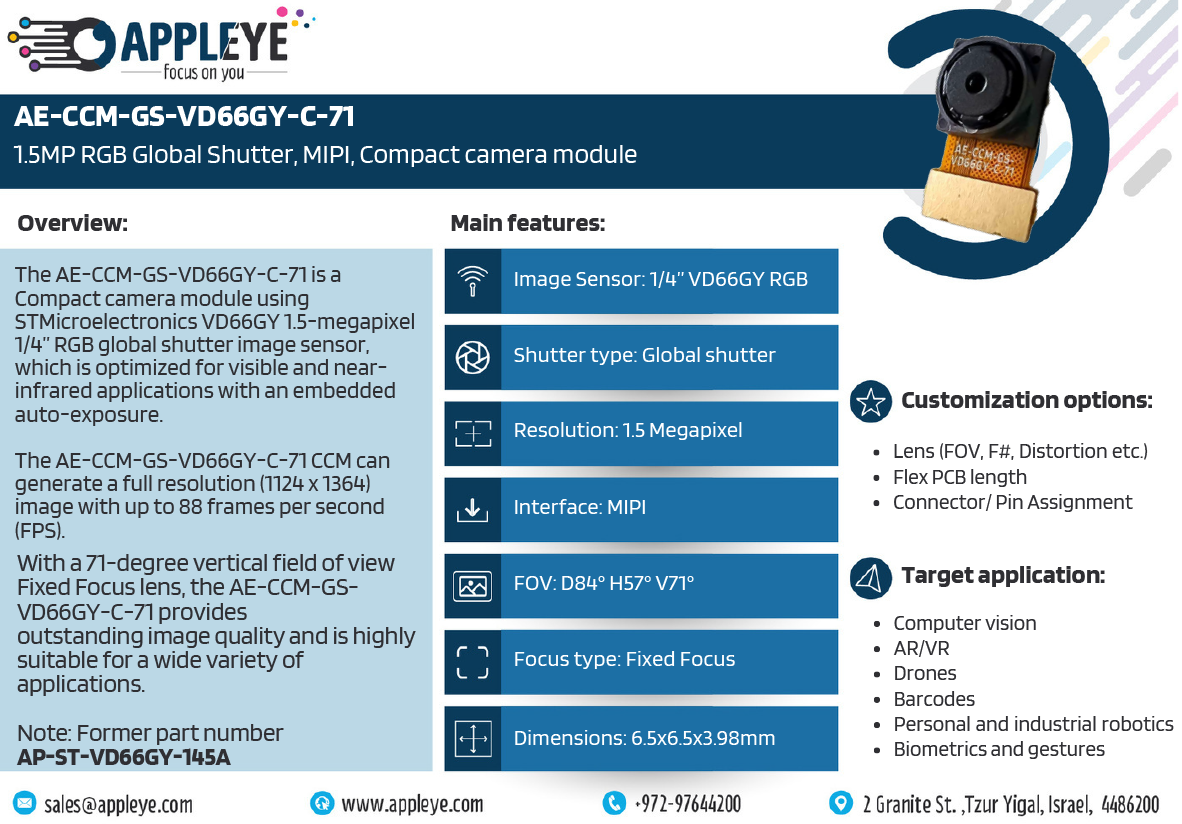

AE-CCM-GS-VD66GY-C-71 | 1.5MP RGB Global Shutter, MIPI, Compact camera module
Main features:
- Image Sensor: 1/4’’ VD66GY RGB
- Shutter type: Global shutter
- Resolution: 1.5 Megapixel
- Interface: MIPI
- FOV: D84° H57° V71°
- Focus type: Fixed Focus
- Dimensions: 6.5×6.5×3.98mm
Customization options:
- Lens (FOV, F#, Distortion etc.)
- Flex PCB length
- Connector / Pin Assignment
Target application:
- Computer vision
- AR/VR
- Drones
- Barcodes
- Personal and industrial robotics
- Biometrics and gestures

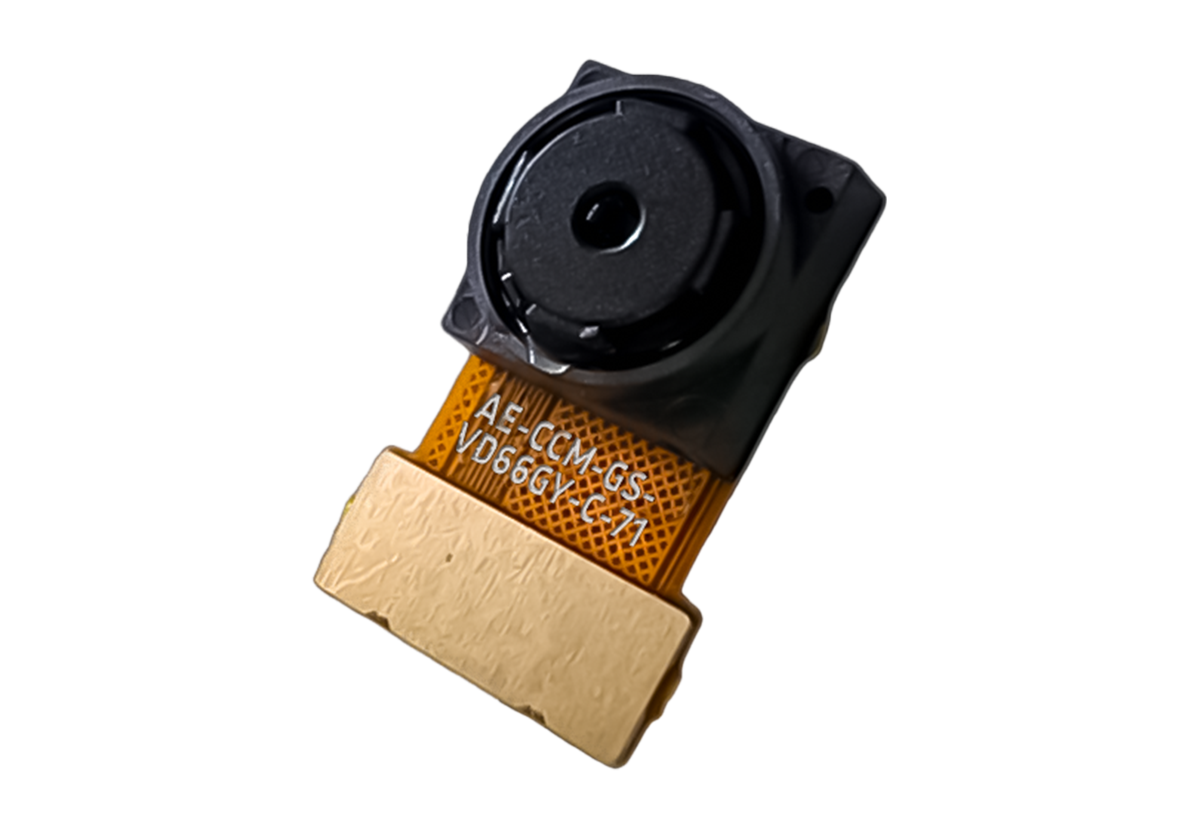

The AE-CCM-GS-VD66GY-C-71 is a Compact camera module using STMicroelectronics VD66GY 1.5-megapixel1/4’’ RGB global shutter image sensor, which is optimized for visible and near-infrared scenes as well as embedded auto-exposure and optical flow motion vector computation.
The AE-CCM-GS-VD66GY-C-71 CCM can generate a full resolution (1124 x 1364)image with up to 88 frames per second(FPS).
With a 71-degree vertical field of view Fixed Focus lens, the AE-CCM-GS-VD66GY-C-71 provides outstanding image quality both in the visible and the near infrared region (850nm, 940 nm)and is highly suitable for a wide variety of applications.
STSW-IMG501
Evaluation software for ST BrightSense image sensors on PC
STSW-IMG507
Software Development Kit (SDK) for ST BrightSense image sensors
STSW-IMG502
Drivers for VD56G3 image sensor and its derivative camera modules on diverse MCUs and MPUs
VD56G3
Compact and high-sensitivity 1.53 megapixel monochrome global shutter image sensor
