5MP Global Shutter Module for Face Recognition
Distortion-free facial capture at up to 96 fps, a 5 MP global shutter RGB module built for access control, identity verification, and real-time biometric systems.
5MP Global Shutter Module for Face Recognition
Distortion-free facial capture at up to 96 fps, a 5 MP global shutter RGB module built for access control, identity verification, and real-time biometric systems.
5MP Global Shutter Module for Face Recognition
Distortion-free facial capture at up to 96 fps, a 5 MP global shutter RGB module built for access control, identity verification, and real-time biometric systems.
Face recognition at an access gate has zero tolerance for motion blur — a walking person, a turning head, or changing ambient light cannot produce a smeared or rolling-shutter-distorted frame, or the algorithm rejects the capture and the queue backs up. The system needs enough resolution to map facial landmarks at arm’s length, enough speed to freeze movement without flash, and enough dynamic range to handle a sunlit lobby and a dim corridor with the same pipeline. The AE-CCM-GS-IMX568-C-60 answers with a Sony IMX568 global shutter sensor delivering 5 MP distortion-free frames at up to 96 fps, 48 dB analog gain for low-light corridors, and a 53° horizontal field of view tuned for single-person capture at 0.5–3 m — the exact envelope a face-recognition terminal or kiosk needs.

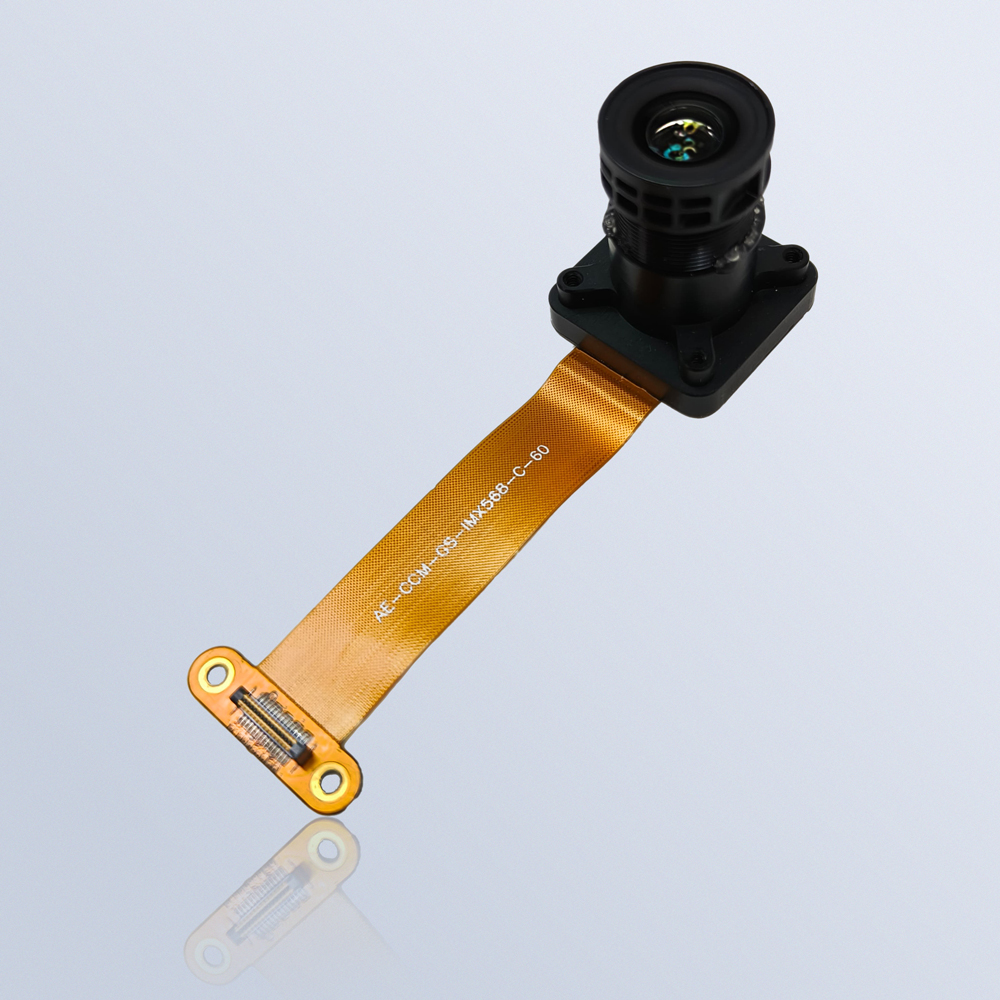

5MP Global Shutter MIPI Compact Camera Module
Built around the Sony IMX568-AAQJ-C 1/1.8″ global shutter CMOS sensor, delivering 2448 × 2048 distortion-free frames at up to 96 fps through a 4-lane MIPI CSI-2 interface. The global shutter eliminates rolling-shutter artefacts — no skew, no wobble, no partial exposures — giving face-recognition algorithms a geometrically perfect input on every frame. Combined with 48 dB analog gain, 8/10/12-bit ADC output, and an IRC 650 nm filter for consistent colour under mixed lighting, the module delivers biometric-grade image quality from a 19 × 19 mm footprint.
AE-CCM-GS-IMX568-C-60
Sensor
1/1.8″ 5.01 MP RGB · Global Shutter · 2.74 µm pixel
Resolution
8-bit / 10-bit / 12-bit ADC output · up to 96 fps full-size
Field of View
Optimised for single-person capture at 0.5–3 m
Optics
EFL 7 mm · F/1.6 · IRC 650 nm filter · focus 5.37 m – ∞
SHUTTER
Zero rolling-shutter distortion · every pixel exposed simultaneously
Interface
AXT430224 connector · I²C control · ROI & subsampling modes
DIMENSIONS
Compact form factor — fits standard M12 mounting enclosures
More Modules for Medical Imaging
Prototype to Surgical-Grade in Eigth Weeks.
01
Capture-distance validation
Module FOV, focus distance, and mounting angle validated against the terminal’s industrial design and expected user height range. Lens swapped if the capture envelope requires a wider or narrower field.
02
Stereo pair matching
Both modules are gain- and response-matched on our line, then tested against your vision pipeline to make sure the depth map is clean.
03
Distribution
Distributed for qualified, repeatable supply at mass production volume.
