4MP Day-Night Surveillance Camera Module
Compact ICR module with 114° wide-angle lens and true day/night switching — built for 24/7 perimeter security and smart surveillance systems.
4MP Day-Night Surveillance Camera Module
Compact ICR module with 114° wide-angle lens and true day/night switching — built for 24/7 perimeter security and smart surveillance systems.
4MP Day-Night Surveillance Camera Module
Compact ICR module with 114° wide-angle lens and true day/night switching — built for 24/7 perimeter security and smart surveillance systems.
Perimeter surveillance demands a camera that never blinks — 4 MP resolution across full daylight, twilight, and pitch-black IR-illuminated scenes, all from a module compact enough for discreet mounting in weatherproof housings. The AE-CCM-GC4023-C-114-FF answers with a GalaxyCore GC4023 sensor behind a 114° wide-angle IR-corrected lens and a mechanical IR-cut filter that switches automatically between daytime colour and night-time IR sensitivity, delivering 2560 × 1440 imagery at 30 fps through a MIPI interface — at just 173 mW.

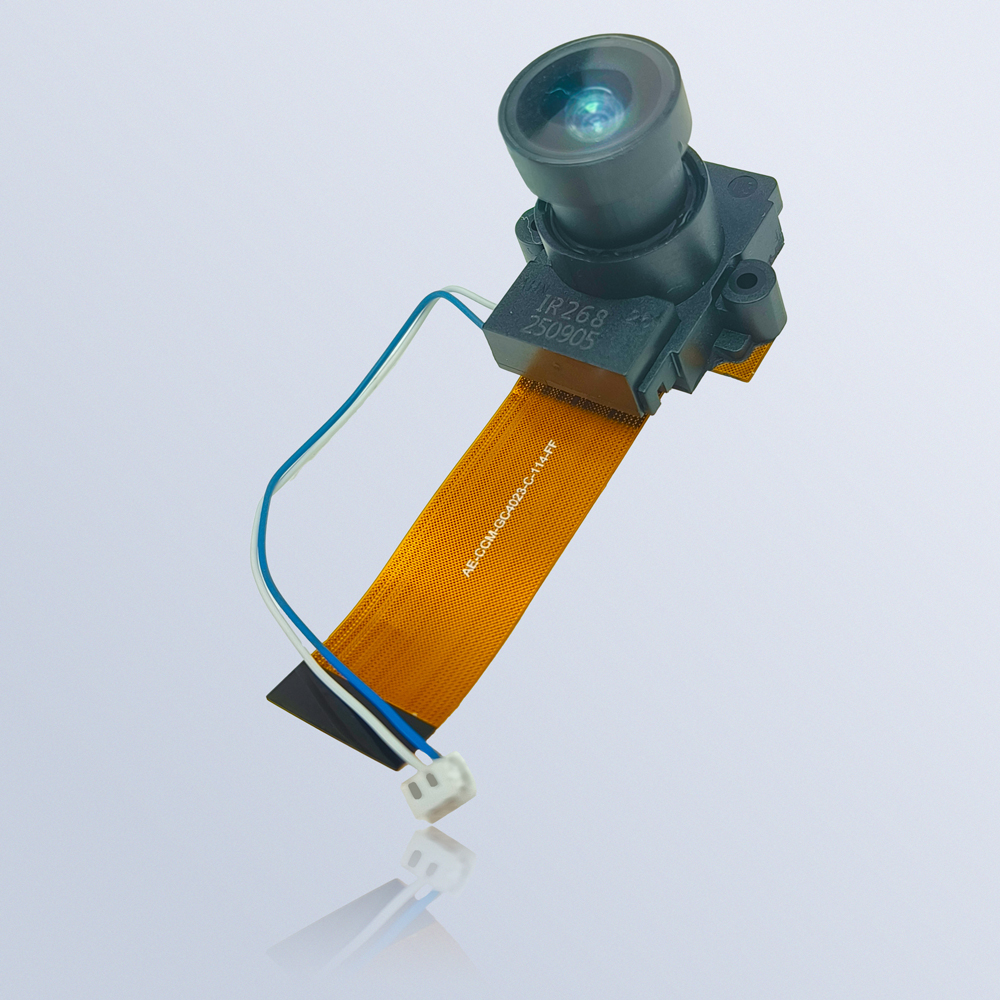

4MP RGB MIPI ICR Compact Camera Module
Built around the GalaxyCore GC4023 1/2.7″ CMOS sensor, delivering 2560 × 1440 resolution at 30 fps through a MIPI CSI-2 interface with just 173 mW power draw. The integrated mechanical IR-cut filter switches automatically between RGB daytime colour and IR-pass night mode, while the 114° wide-angle IR-corrected lens eliminates focal shift across the visible-to-NIR spectrum — enabling sharp, surveillance-grade imagery around the clock from a single compact module.
AE-CCM-GC4023-C-114-FF
Sensor
1/2.7″ 4MP RGB Bayer · Rolling Shutter · 2.3 µm pixel
Resolution
RAW Bayer 10-bit / 8-bit output · 30 fps full-size
Field of View
Wide-angle coverage for perimeter zones
Optics
EFL 2.8 mm · F/1.6 · IR-corrected · AR coated · focus 0.7 m – ∞
NIR RESPONSE
Auto-switch IR-cut at 650 nm · true colour by day, IR-pass at night
Interface
CF25302D0R0-05-NH connector · I²C control · –30°C to +85°C operating
DIMENSIONS
Compact enough to disappear inside any housing
More Modules for Medical Imaging
Prototype to Surgical-Grade in Eigth Weeks.
01
Mechanical fit-check
Module envelope, FPC routing, and holder assembly validated against the enclosure CAD. ICR switching parameters tuned to the customer’s IR illuminator wavelength before tooling.
02
Stereo pair matching
Both modules are gain- and response-matched on our line, then tested against your vision pipeline to make sure the depth map is clean.
03
Distribution
Distributed for qualified, repeatable supply at mass production volume.
