AE-CCM-GS-VD55G1-M-65 | 0.56MP, Monochrome Global Shutter, MIPI Compact camera module

Categories 0.1-1.9 Mega Pixel, Camera Type, Compact camera module, Global, Resolution, Shutter type Tag AE-CCM-GS-VD55G1-M-65

Main features:

Image Sensor: 1/10’’ VD55G1 Mono
Shutter type: Global shutter
Resolution: 0.56 Megapixel
Interface: MIPI
FOV: D82° H66° V60°
Focus type: Fixed Focus
Dimensions: 5x5x3.3mm

Customization options:

Lens (FOV, F#, Distortion etc.)
Flex PCB length
Connector/ Pin Assignment

Target application:

AR/VR
Barcodes
Personal and industrial small size robots
Biometrics and gestures

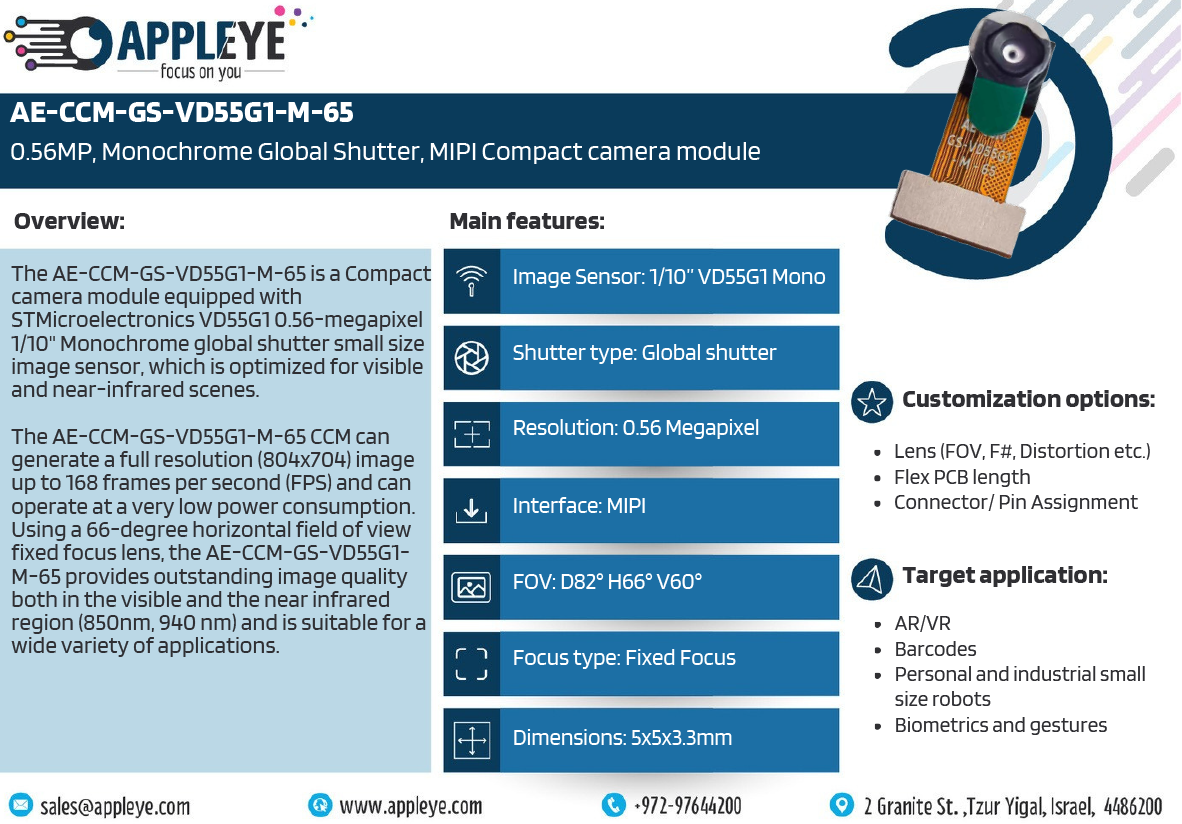

Download the Product Brief

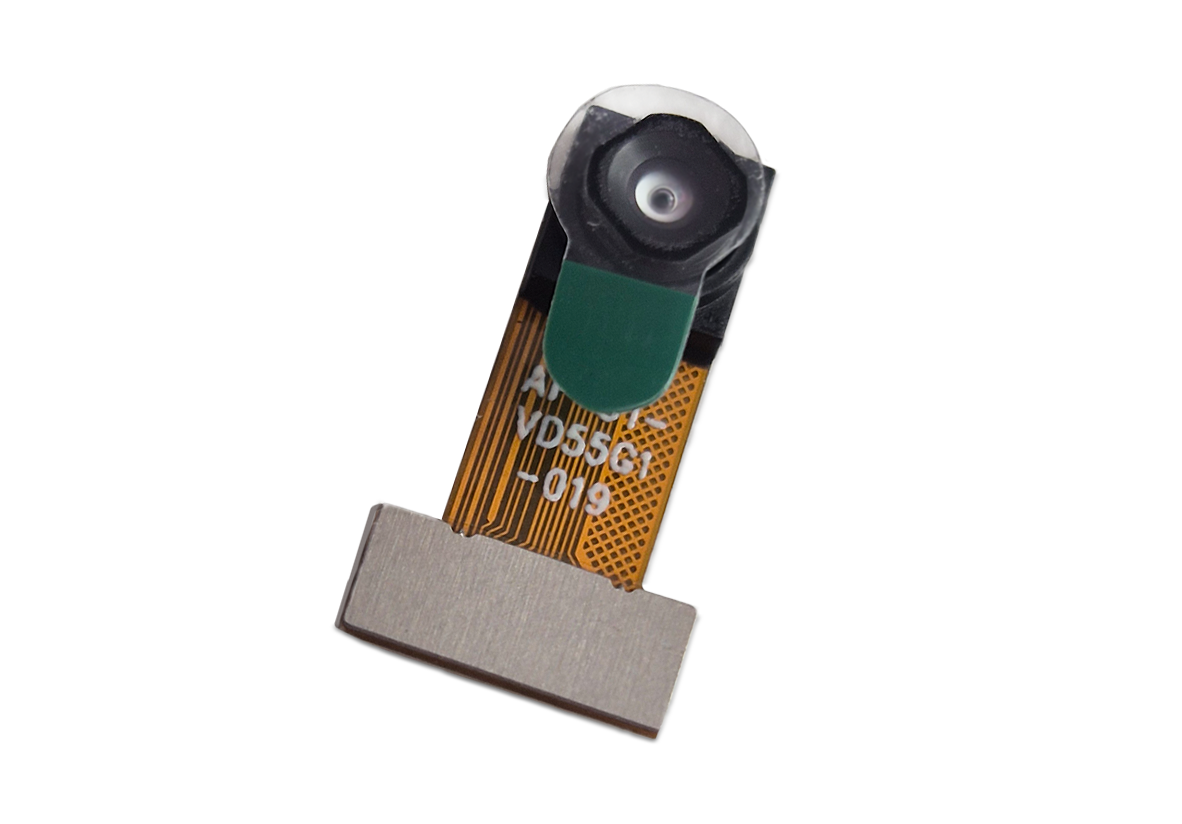

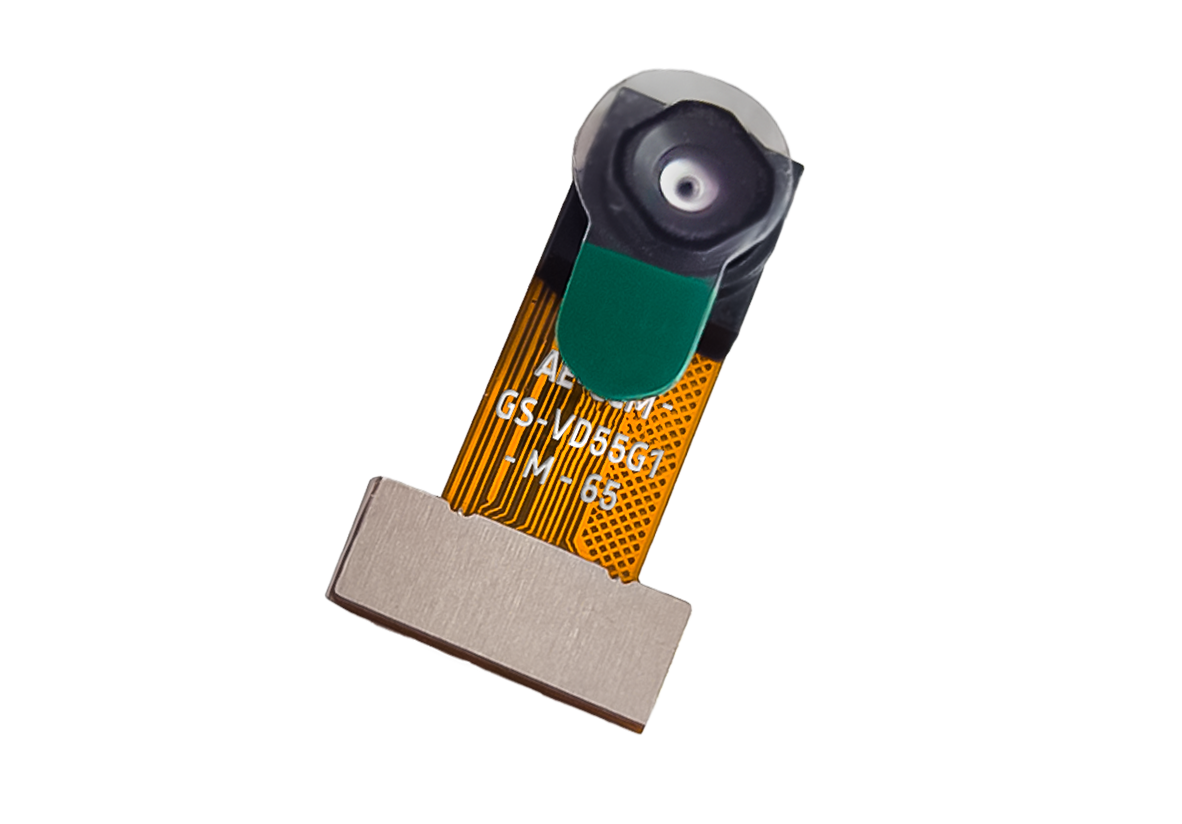

The AE-CCM-GS-VD55G1-M-65 is a Compact camera module equipped with STMicroelectronics VD55G1 0.56-megapixel1/10″ Monochrome global shutter small size image sensor, which is optimized for visible and near-infrared scenes.

The AE-CCM-GS-VD55G1-M-65 CCM can generate a full resolution (804×704) image up to 60 frames per second (FPS) and can operate at a very low power consumption.

Using a 66-degree horizontal field of view fixed focus lens, the AE-CCM-GS-VD55G1-M-65 provides outstanding image quality both in the visible and the near infrared region (850nm, 940 nm) and is suitable for a wide variety of applications.
