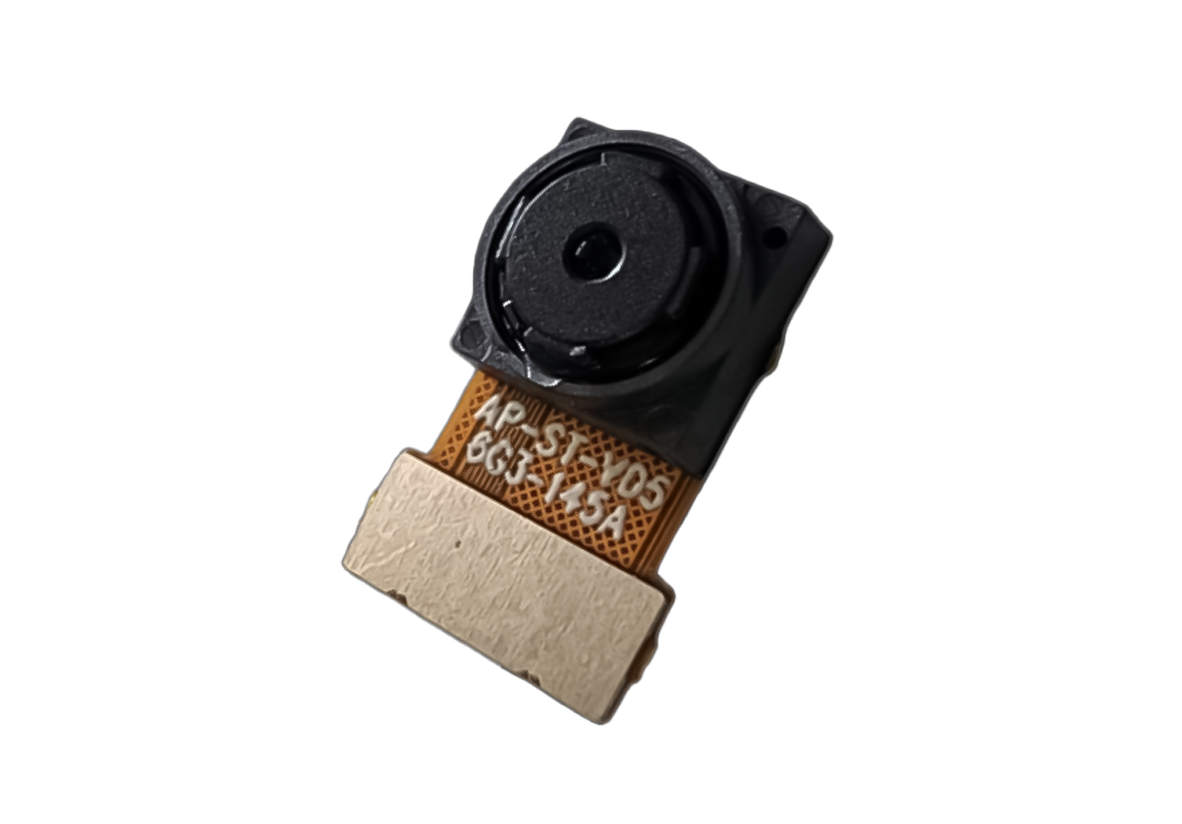

AE-CCM-GS-VD56G3-M-71 | 1.5MP Monochrome Global Shutter, MIPI, Compact camera module
AE-CCM-GS-VD56G3-M-71 | 1.5MP Monochrome Global Shutter, MIPI, Compact camera module - Image 2
Request the Full Data Sheet
Contact Us

AE-CCM-GS-VD56G3-M-71 | 1.5MP Monochrome Global Shutter, MIPI, Compact camera module

Categories , , , , , Tag

Main features:

  • Image Sensor: 1/4’’ VD56G3 Mono
  • Shutter type: Global shutter
  • Resolution: 1.5 Megapixel
  • Interface: MIPI FOV: D84° H57° V71°
  • Focus type: Fixed Focus
  • Dimensions: 6.5×6.5×3.98mm

Customization options:

  • Lens (FOV, F#, Distortion etc.)
  • Flex PCB length
  • Connector/ Pin Assignment

Target application:

  • Computer vision
  • AR/VR
  • Drones
  • Barcodes
  • Personal and industrial robotics
  • Biometrics and gestures

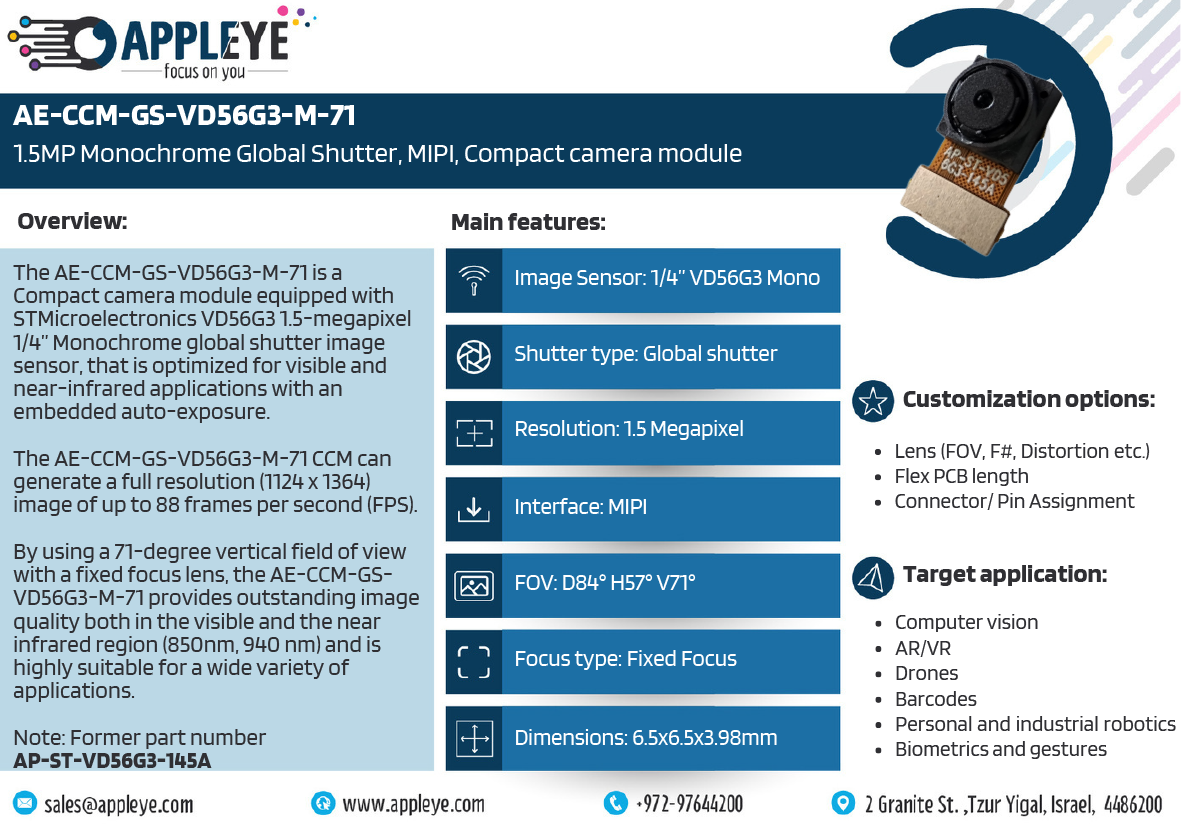

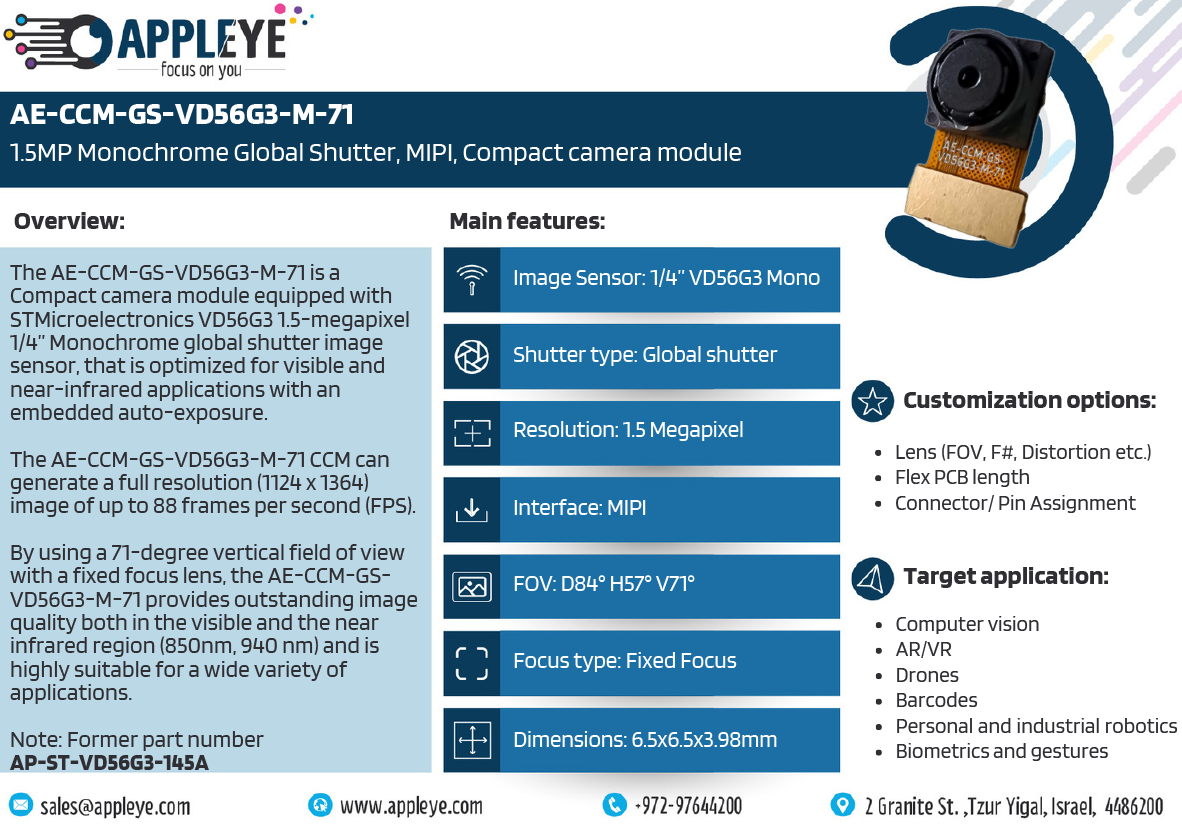

Download the Product Brief

The AE-CCM-GS-VD56G3-M-71 is a Compact camera module equipped with STMicroelectronics VD56G3 1.5-megapixel1/4’’ Monochrome global shutter image sensor, that is optimized for visible and near-infrared applications with both embedded auto-exposure and optical flow motion vector computation.

The AE-CCM-GS-VD56G3-M-71 CCM can generate a full resolution (1124 x 1364)image of up to 88 frames per second (FPS).

By using a 71-degree vertical field of view with a fixed focus lens, the AE-CCM-GS-VD56G3-M-71 provides outstanding image quality both in the visible and the near infrared region (850nm, 940 nm) and is highly suitable for a wide variety of applications.

STSW-IMG501

Evaluation software for ST BrightSense image sensors on PC

STSW-IMG502

Drivers for VD56G3 image sensor and its derivative camera modules on diverse MCUs and MPUs

STSW-IMG507

Software Development Kit (SDK) for ST BrightSense image sensors

VD56G3

Compact and high-sensitivity 1.53 megapixel monochrome global shutter image sensor
