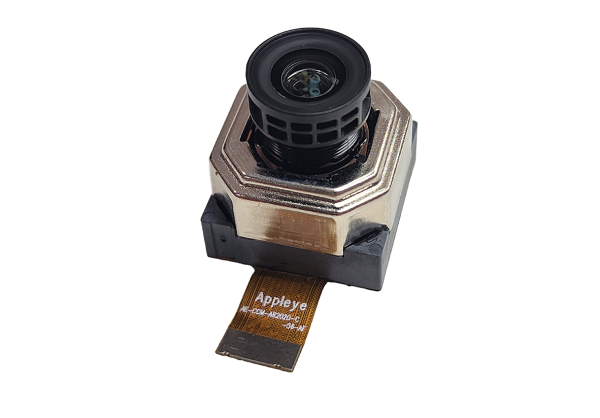

AE-CCM-AR2020-C-56-AF | 20 MP Autofocus RGB MIPI Compact Camera Module

Categories 17-23 Mega Pixel, Camera Type, Compact camera module, Resolution, Rolling, Shutter type

Main features:

Image Sensor: 1/1.8” AR2020 RGB
Shutter type: Electronic Rolling Shutter
Resolution: 20 Megapixel
Interface: MIPI
FOV: D69° H56° V43°
Focus type: Auto-focus
Dimensions: 22.2X22.2X24.17mm

Customization options:

Lens (FOV, F#, Distortion etc.)
Flex PCB length
Connector / Pin Assignment

Target application:

Surveillance Camera
Machine Vision
Video Conferencing
3D and Stereo Imaging

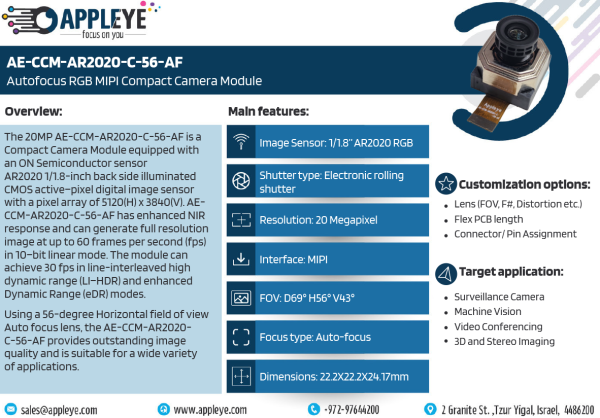

Download the Product Brief

Overview:

The 20MP AE-CCM-AR2020-C-56-AF is a Compact Camera Module equipped with an ON Semiconductor sensor AR2020 1/1.8-inch back side illuminated CMOS active−pixel digital image sensor with a pixel array of 5120(H) x 3840(V).

The AE-CCM-AR2020-C-56-AF has enhanced NIR response and can generate full resolution image at up to 60 frames per second (fps) in 10−bit linear mode. The module can achieve 30 fps in line-interleaved high dynamic range (LI−HDR) and enhanced Dynamic Range (eDR) modes.

Using a 56-degree Horizontal field of view Auto focus lens, the AE-CCM-AR2020-C-56-AF provides outstanding image quality and is suitable for a wide variety of applications.
