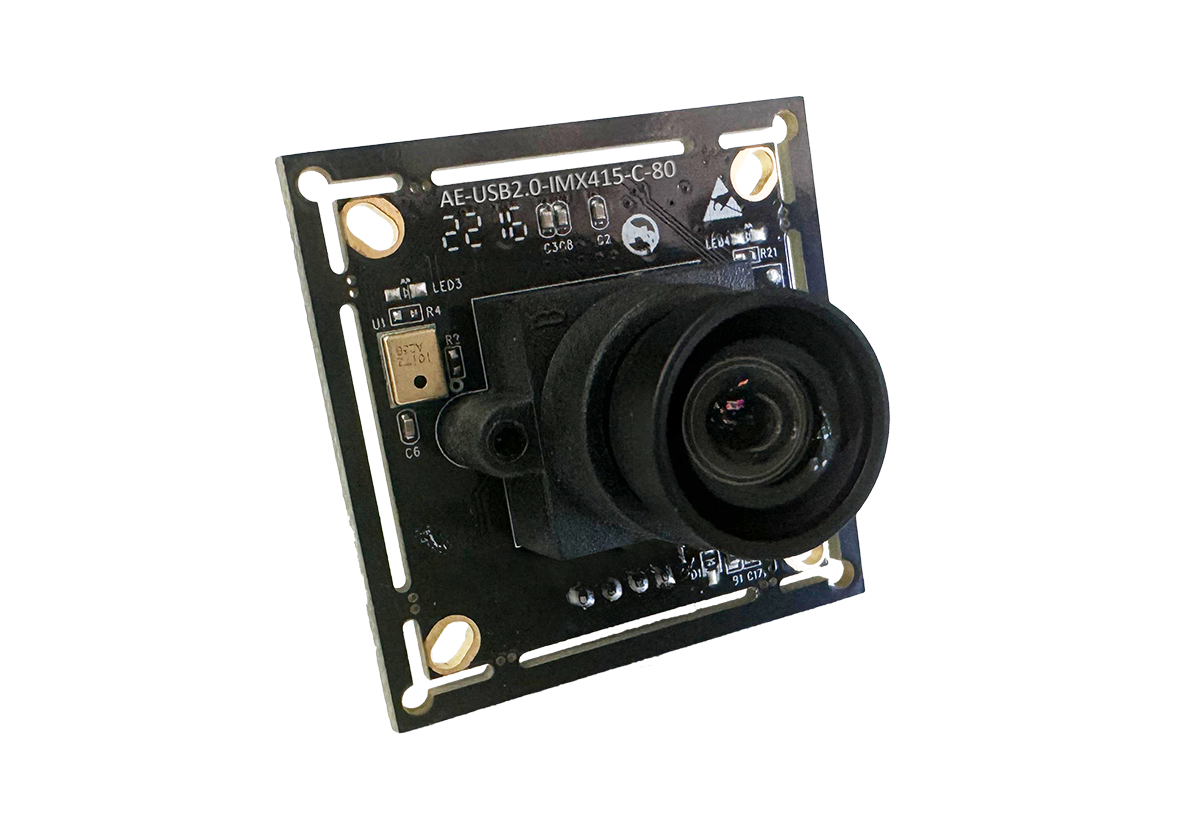

AE-USB2.0-IMX415-C-80 | 8MP USB2.0 Board Camera Module

Categories 3-7.9 Mega Pixel, Camera Type, Resolution, Rolling, Shutter type, USB

Main features:

Image Sensor: 1/2.8” CMOS IMX415
Shutter type: Electronic Rolling Shutter
Resolution: 8 Megapixel
Interface: USB 2.0
FOV: D88° H80° V51°
Focus type: Fixed Focus
Dimensions: 38x38X31mm

Customization options:

Lens (FOV, F#, Distortion etc.)
PCB size, Connector/ Pin
Assignment

Target application:

Retail cameras
Video doorbells
Webcam
Surveillance
Agriculture

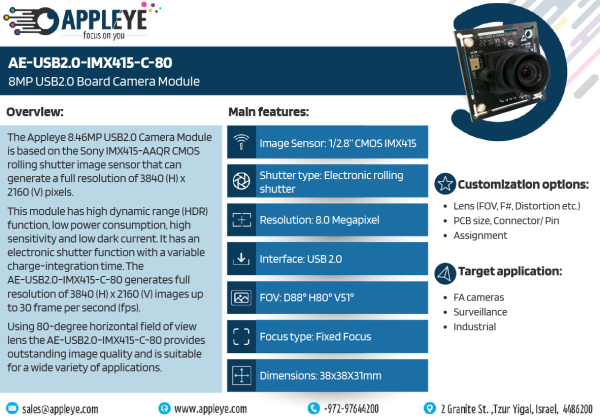

Download the Product Brief

Overview:

The Appleye 8.46MP USB2.0 Camera Module is based on the Sony IMX415-AAQR CMOS rolling shutter image sensor that can generate a full resolution of 3840 (H) x 2160 (V) pixels.

This module has high dynamic range (HDR) function, low power consumption, high sensitivity and low dark current. It has an electronic shutter function with a variable charge-integration time. The AE-USB2.0-IMX415-C-80 generates full resolution of 3840 (H) x 2160 (V) images up to 30 frame per second (fps).

Using 80-degree horizontal field of view lens the AE-USB2.0-IMX415-C-80 provides outstanding image quality and is suitable for a wide variety of applications.
