AE-MB-IMX327-C-114 | 2MP MIPI Board Camera Module

Categories 2-2.9 Mega Pixel, Board Camera, Camera Type, Resolution, Rolling, Shutter type

Main features:

Image Sensor: 1/ 2.8” IMX327LQR-C RGB
Shutter type: Electronic Rolling shutter
Resolution: 2.07 Megapixel
Interface: MIPI
FOV: D132° H114° V63°
Focus type: Fixed Focus
Dimensions: 24.3×16.6X21.83mm

Customization options:

Lens (FOV, F#, Distortion etc.)
Board size customization
Connector / Pin Assignment

Target application:

Surveillance
Industrial cameras

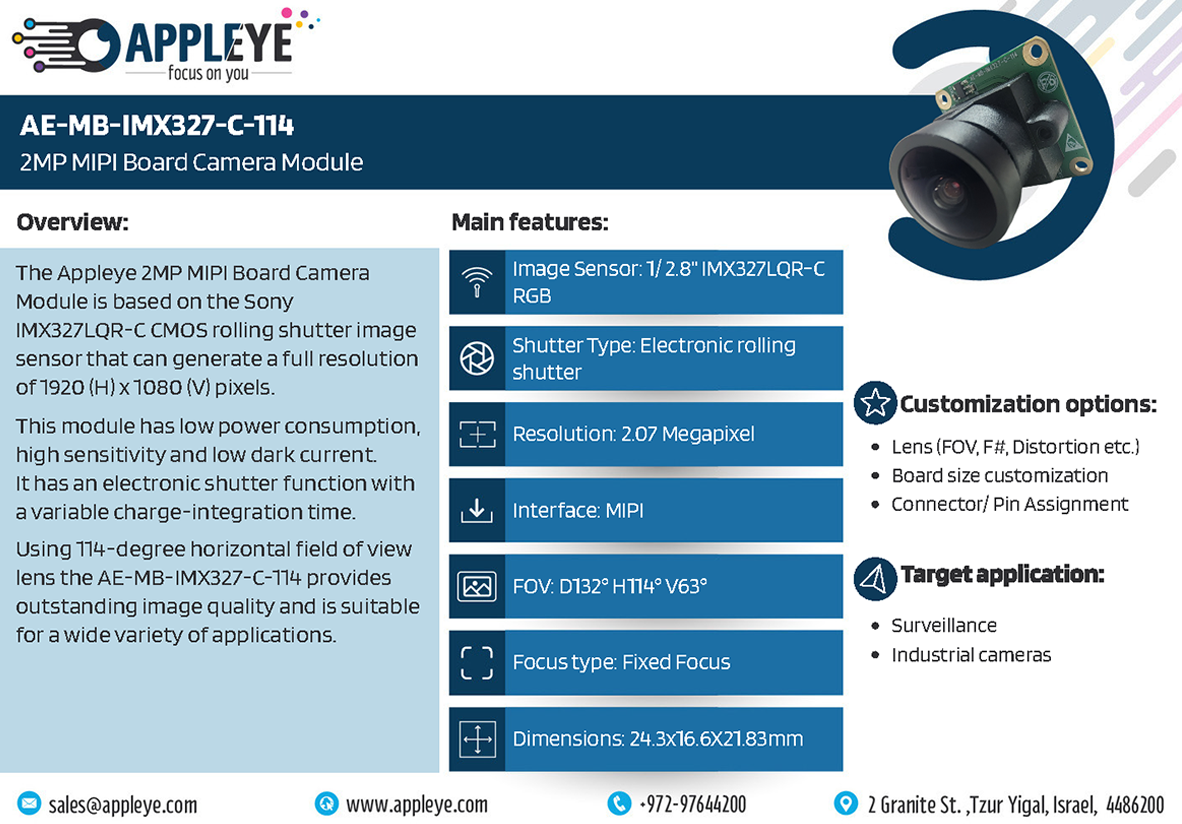

Download the Product Brief

Overview:

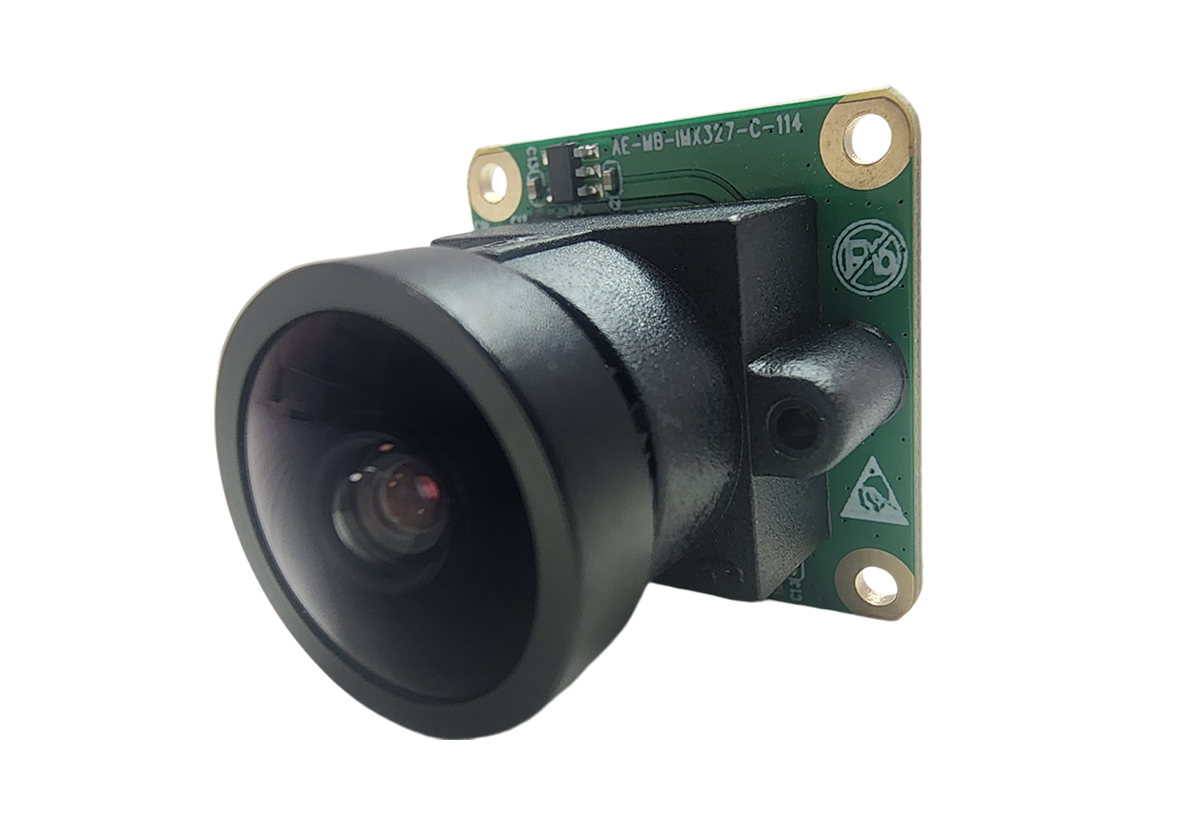

The Appleye 2MP MIPI Board Camera Module is based on the Sony IMX327LQR-C CMOS rolling shutter image sensor that can generate a full resolution of 1920 (H) x 1080 (V) pixels.

This module has low power consumption, high sensitivity and low dark current. It has an electronic shutter function with a variable charge-integration time.

Using 114-degree horizontal field of view lens the AE-MB-IMX327-C-114 provides outstanding image quality and is suitable for a wide variety of applications.
