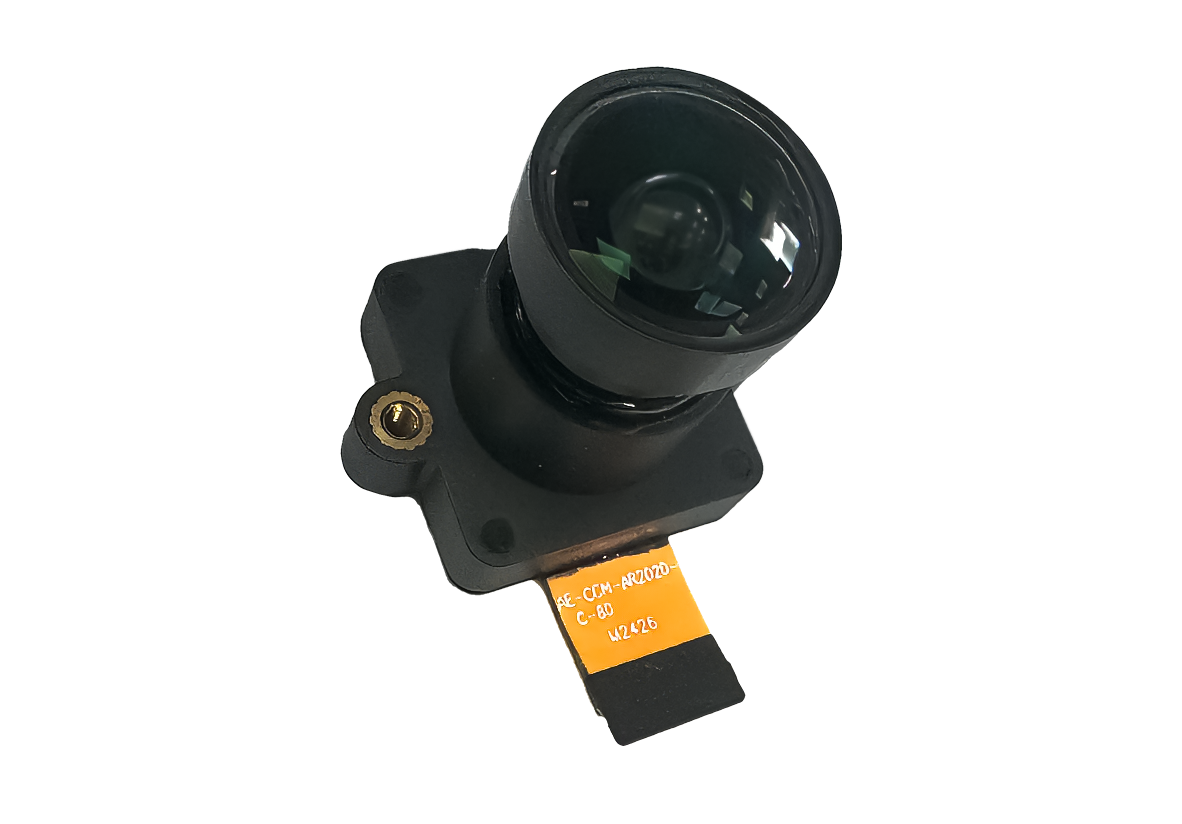

AE-CCM-AR2020-C-80 | 20 MP RGB MIPI Compact Camera Module

Main features:

  • Image Sensor: 1/1.8” AR2020 RGB
  • Shutter type: Electronic Rolling Shutter
  • Resolution: 20 Megapixel
  • Interface: MIPI
  • FOV: D94° H80° V60°
  • Focus type: Fixed Focus
  • Dimensions: 20x20X28.52mm

Customization options:

  • Lens (FOV, F#, Distortion etc.)
  • Flex PCB length
  • Connector / Pin Assignment

Target application:

  • Surveillance Camera
  • Machine Vision
  • Video Conferencing
  • 3D and Stereo Imaging

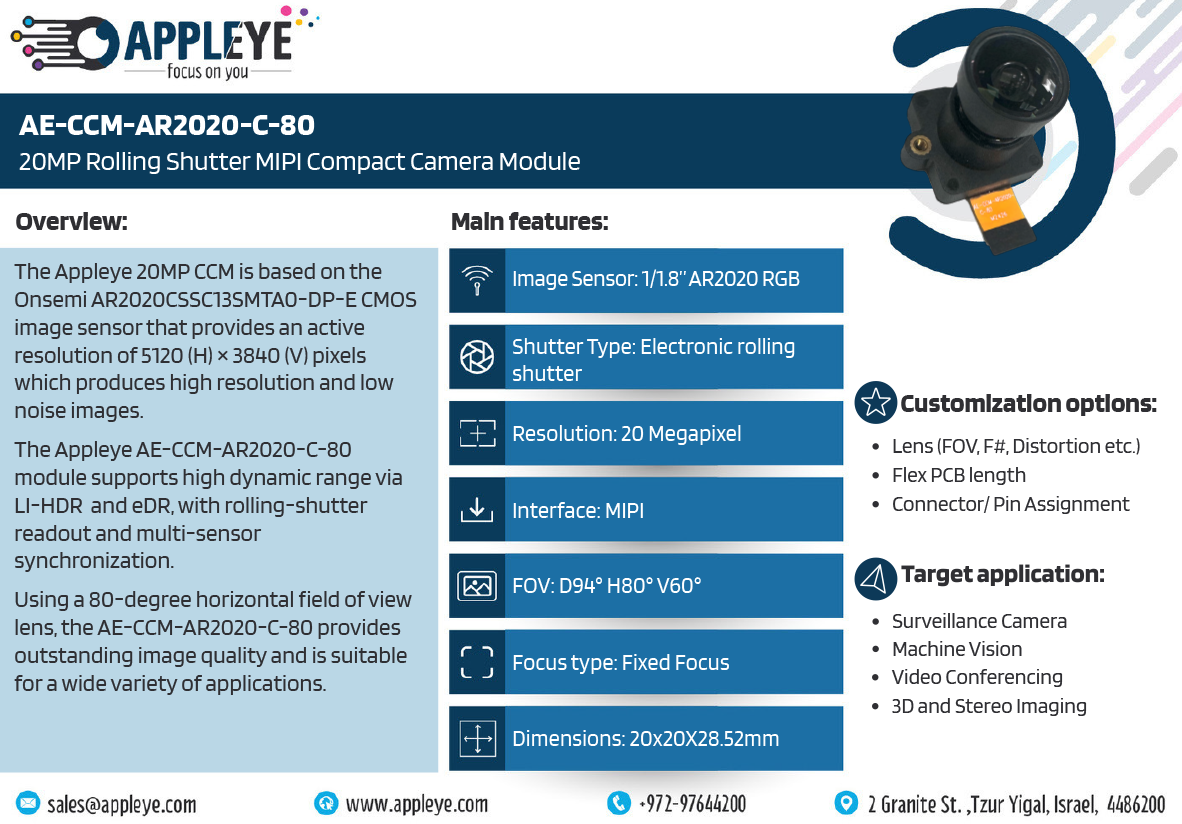

Download the Product Brief
